IMAGE SET-I

These images are computer generated document images showing the effect of different types of degradations. Some of them (image00 to image00d) are computer generated document. This set contains the images for which we have the ground truth image and we can evaluate our method using ground truth based evaluation measures. F-measure, PSNR and NRM are established evaluation measures. A higher quality binarized image has higher F-Measure¹ and PSNR¹ but lower NRM¹.

Information to Noise Difference (IND)

We have designed a method to test the quality of the binarized image based on information and noise.
IND = Ivalue - Nvalue, where Ivalue = TP/NB_GT and Nvalue = FP/NB_BI
TP is number of true positives, FP is number of false positives, NB_GT and NB_BI are the number of black pixels in ground truth and in binarized image respectively. Here Ivalue signifies the information preserved in the binarized image and Nvalue represents the noise in the binarized image. The value of IND ranges between -1 to +1 where +1 means binarized image is the exact copy of ground truth while -1 signifies that binarized image is the invert of ground truth.

¹ DIBCO 2009, B. Gatos, K. Ntirogiannis and I. Pratikakis

---

IMAGES

* Click on link to view result of used binarization algorithms

---

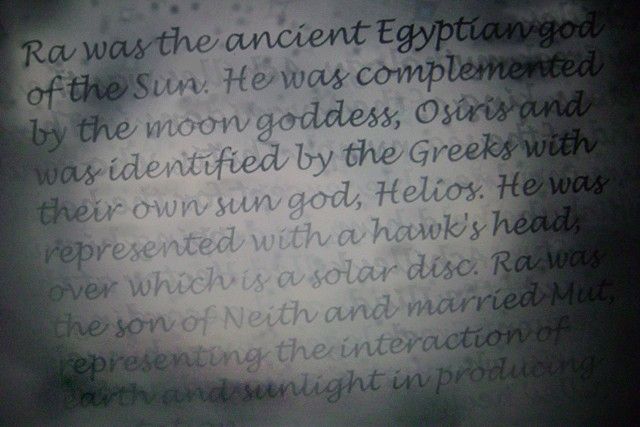

1) set1/image00 Image showing the worst scenario for a binarization technique. It has many degradation including variable background and shadows, non-uniform illumination, ink bleed-through and blur caused by humidity. Image size (in pixels): 640×427

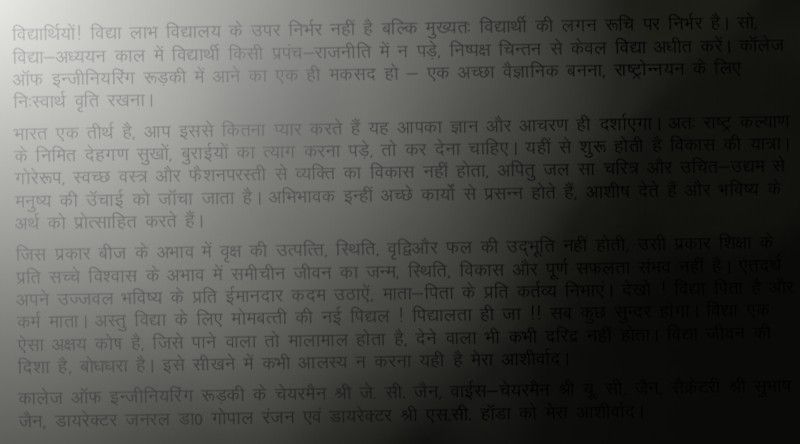

2) set1/image00a A non-uniform illuminated image producing variable contrast areas. Image size (in pixels): 800×444

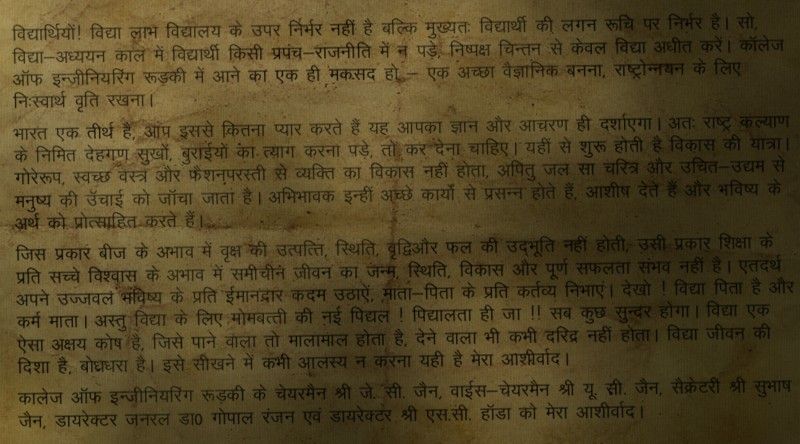

3) set1/image00b Image with variable background and shadows. It also contains patches and paper fold marks. Image size (in pixels): 800×444

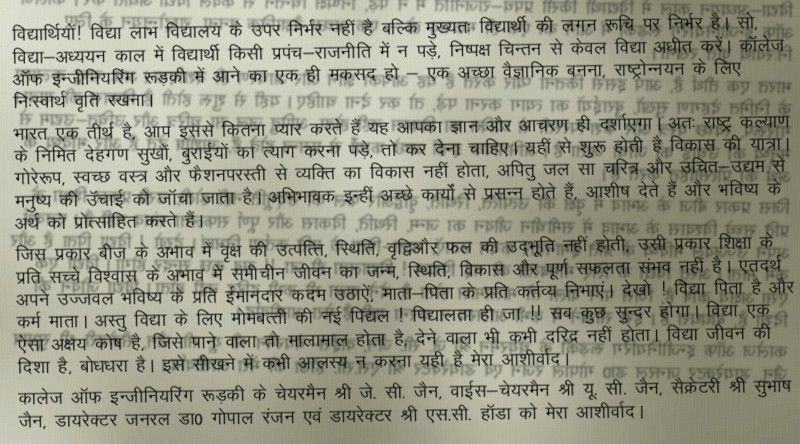

4) set1/image00c Sometimes ink leaks through the other side of the paper. This is known as strike through and occurs when the paper has insufficient absorption capacity for the density of the ink usually because of light coated paper. Image size (in pixels): 800×444

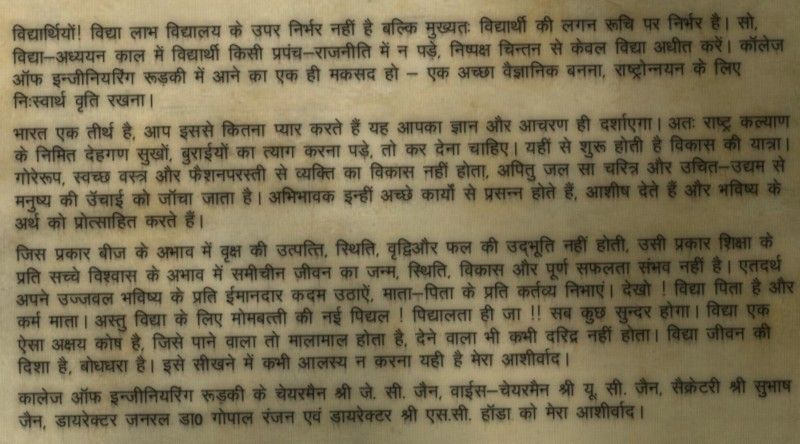

5) set1/image00d Some paper swells in the presence of the moisture in the water-based ink or in the uncoated paper, which tends to absorb the ink resulting in a blurred image, allowing the colorants to spread near the text areas. Image size (in pixels): 800×444

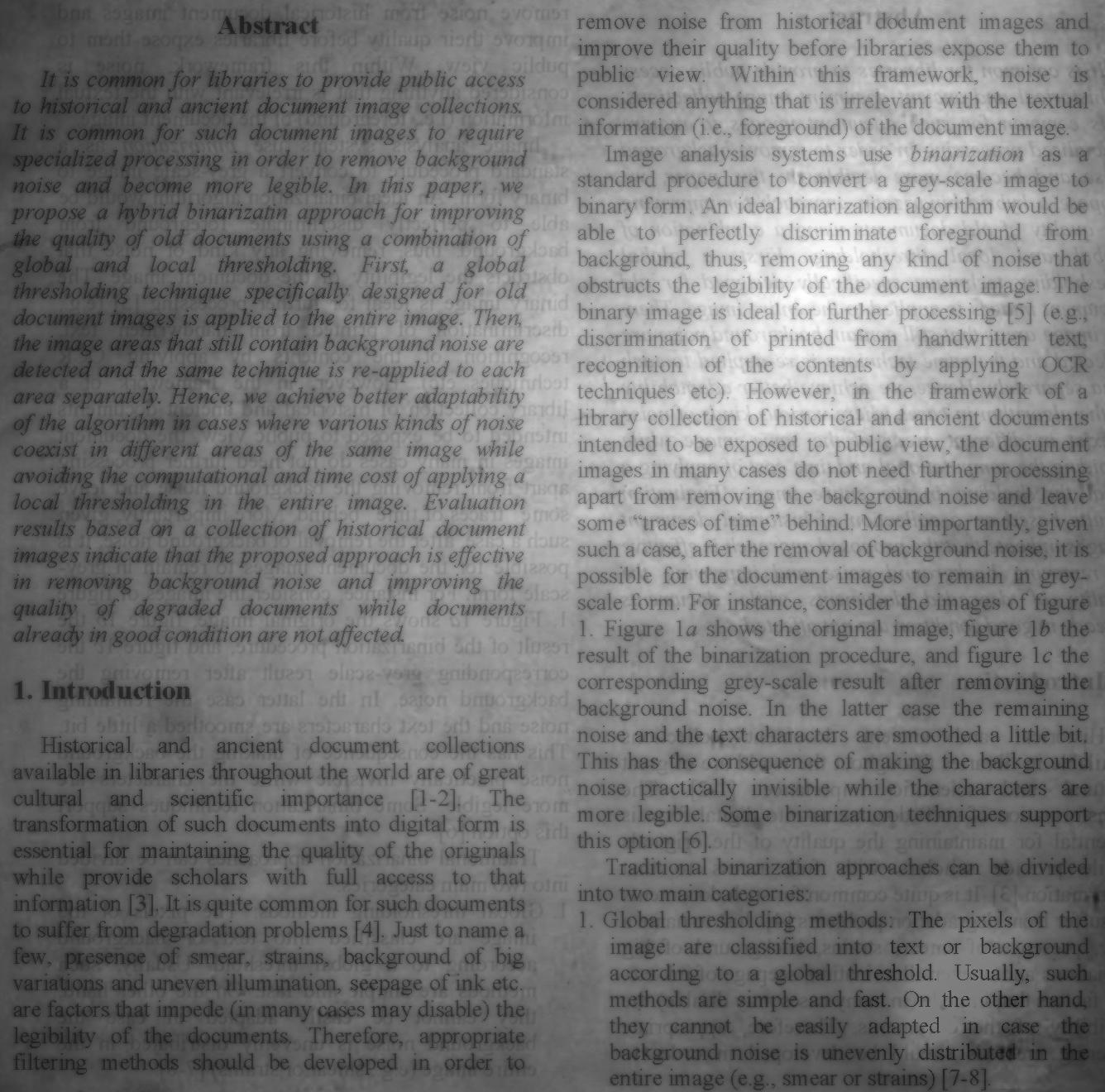

6) set1/paper1a Image size (in pixels): 1336×1320

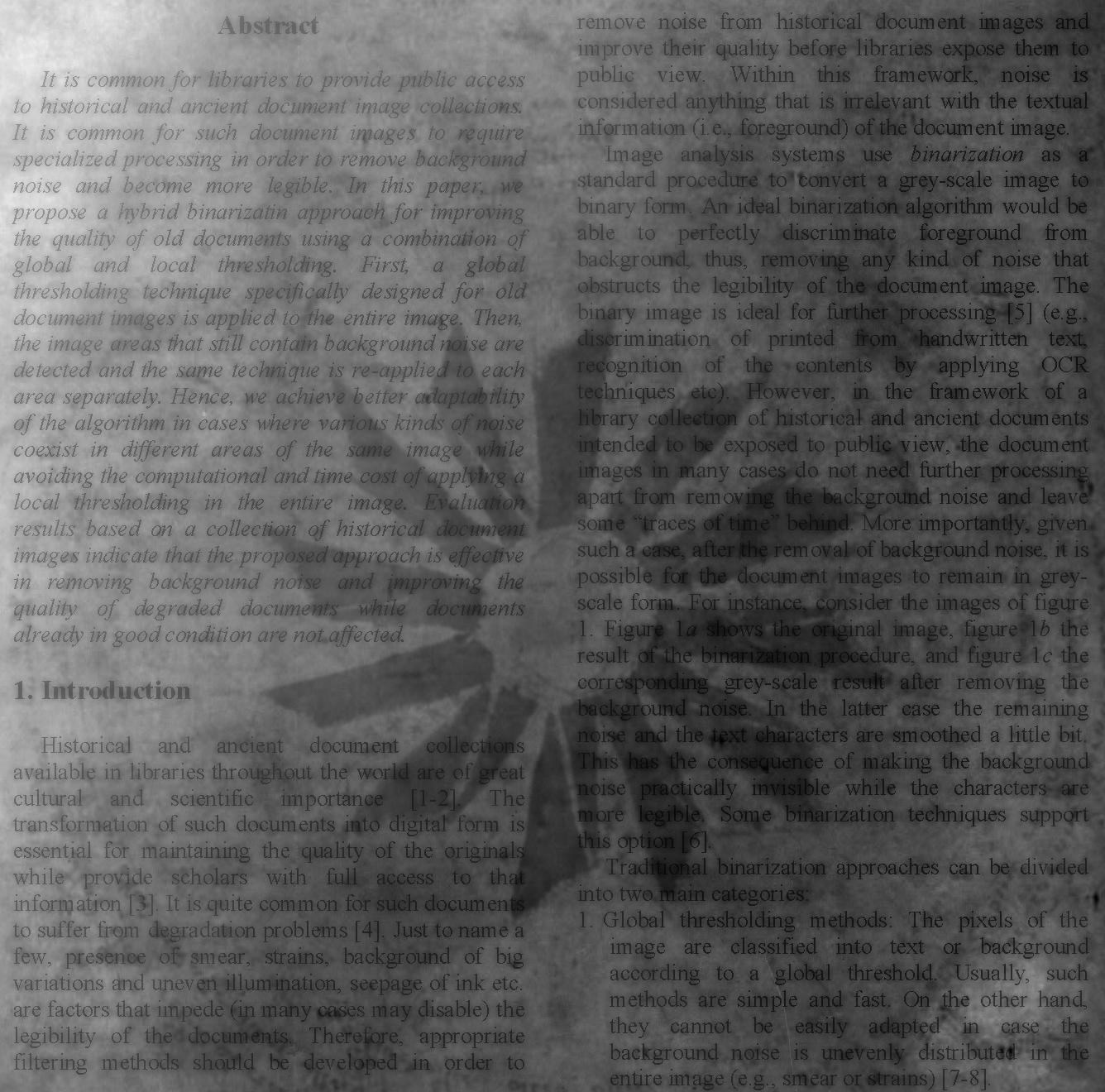

7) set1/paper1b Image size (in pixels): 1336×1320

8) set1/paper2 Image size (in pixels): 664×1596

9) set1/paper3a Image size (in pixels): 1336×1712

10) set1/paper3b Image size (in pixels): 1336×1712
